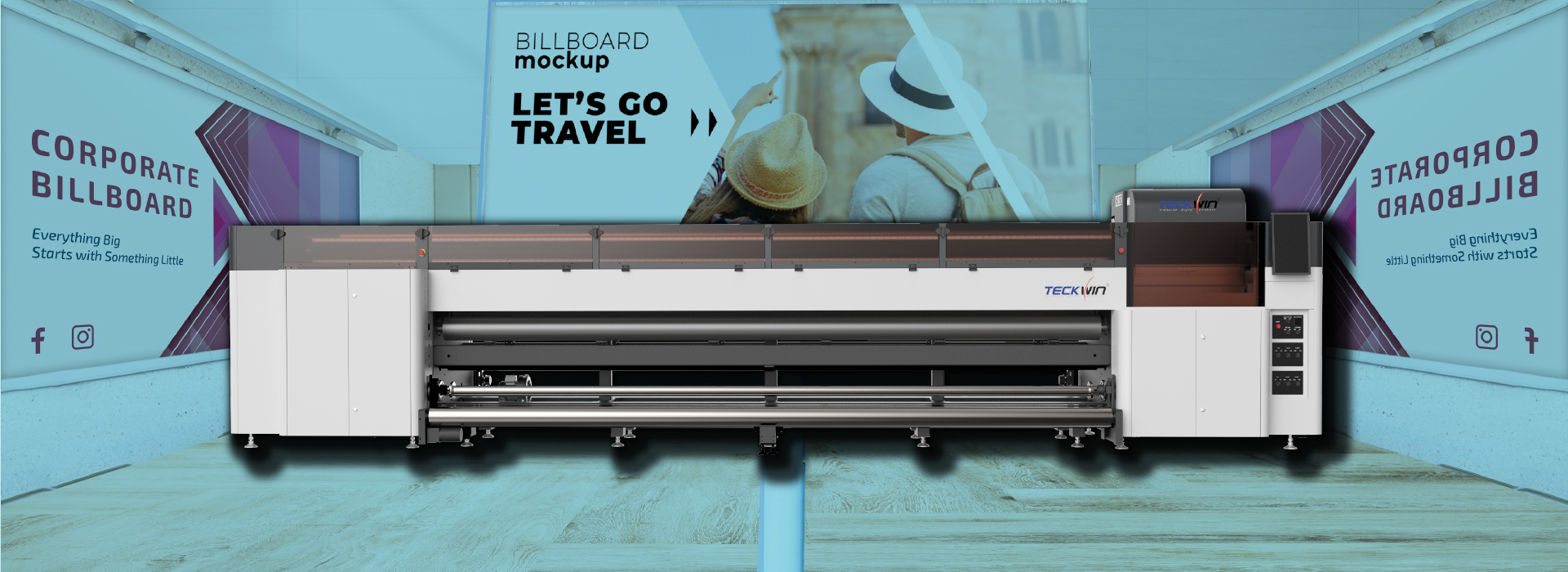

TS 5000HF 5m High Speed UV LED R2R Printer
This reliable and innovative printer fulfills the printing needs of the most demanding graphics applications. With the maximum speed of up to 280 sqm/ hour 397 x 800 DPI this is a highly productive printer. Committing to super wide format & high-precision all with heavy duty printing, the TS5000HF is able to produce thousands of colors and accurate details of your choice.
Inkjet solution for UV, Banners, Backlit, Wall Paper, Textile and Packing Applications.
The Most reliable partner for your business.
Features
- Ink dot control technology saves you ink and makes image fine and smooth.
- Inside shutter UV curing system to improve material adhesion, reduce material out of shape and protect print head.
- Stable ink circulation and double strike to support dark and high density grand material.
- Multi backlit printing modes.
- Separate negative pressure control of each individual print head ensures each color negative pressure controllable
- Special UV light coverage to make operation more secure.
- Ink cleaning solution channel to clean print heads in white channel without disassembling print heads.
- Color white print mode to make more applications.
Specifications
| Printhead | SG 1024 FUJI DIMATIX STARFIRE SG1024 7PL Double array up to 14 heads |
| Color | C/M/Y/K C/M/Y/K/W C/M/Y/K/LC/LM/W C/M/Y/K/LC/LM/W/W C/M/Y/K/LC/LM |
| Print Mode (sq.m/hr) Mode Capacity | Printing Mode * Printing Speed 397 x 800 DPI * 280 sqm/h 397 x 1200 DPI * 178 sqm/h 794 x 800 DPI * 140 sqm/h 794 x 1200 DPI * 86 sqm/h 1191 x 1200 DPI * 70 sqm/h |
| Max Printing Size | 5 meters |
| Max Material Size | 5.1 meters |
| Feeding System | Roll to Roll |
| Curing system | Dual sides LED lamp |
